1.一般規格
|
溫升 |
80K |
|
使用環境 |
溫度：-10~+50℃；濕度：85% MAX |
|
絕緣等級 |
B |
|
絕緣電阻 |
100MΩ MIN 500Vdc |
|
耐電壓 |
500Vac 1min |
|
徑向跳動 |
0.025 mm MAX(負載5N） |
|
軸向跳動 |
0.075 mm MAX(負載10N） |
2.技術規格
|
型號 |
機身長度(L) |
靜力矩 |
額定電流 |
電阻/相 |
電感/相 |
轉子慣量 |
|
mm |
N.m |
A |
Ω |
mH |
g.cm2 |
|
|
86HSM45-FS-E1/E5Z |
115 |
4.5 |
6 |
0.43 |
2.95 |
1400 |
|
86HSM80-FS-E1/E5Z |
133 |
8.0 |
6 |
0.63 |
4 |
2500 |
|
86HSM85-FS-E1/E5Z |
153 |
8.5 |
6 |
0.53 |
4.25 |
2700 |
|
86HSM85H-FS-E1/E5Z |
153 |
8.5 |
6 |
0.53 |
4.25 |
2700 |
|
86HSM120H-FS-E1/E5Z |
164 |
12.0 |
6 |
0.75 |
5.30 |
2940 |
|
863HSM80H-FS-E1/E5Z |
162 |
8 |
6 |
2.6 |
17.4 |
2940 |
|
863HSM100H-FS-E1/E5Z |
191 |
10 |
6 |
2.66 |
18.9 |
4000 |
|

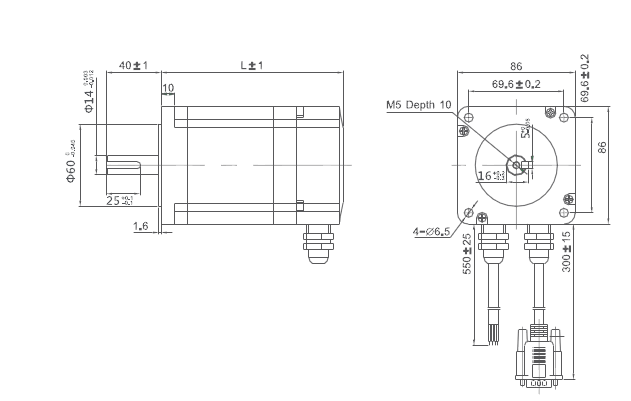

型號 |
機身長度(L) |
|
mm |
|
|
86HSM45-FS-E1/E5Z |
115 |
|
86HSM80-FS-E1/E5Z |
133 |
|
86HSM85-FS-E1/E5Z |
153 |
|
86HSM85H-FS-E1/E5Z |
153 |
|
86HSM120H-FS-E1/E5Z |
164 |
|
863HSM80H-FS-E1/E5Z |
162 |
|
863HSM100H-FS-E1/E5Z |
191 |

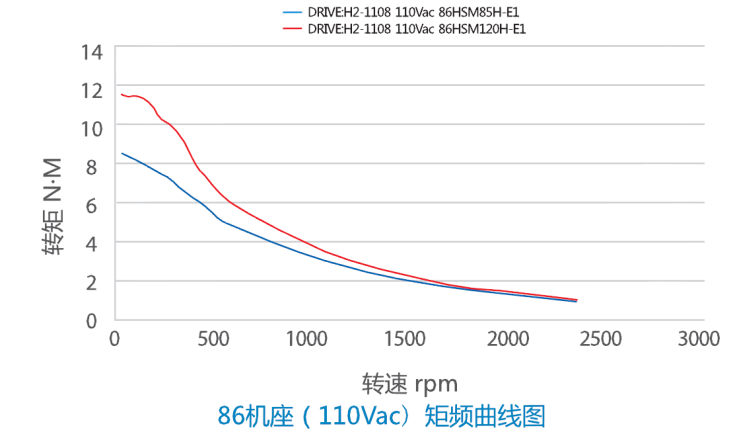

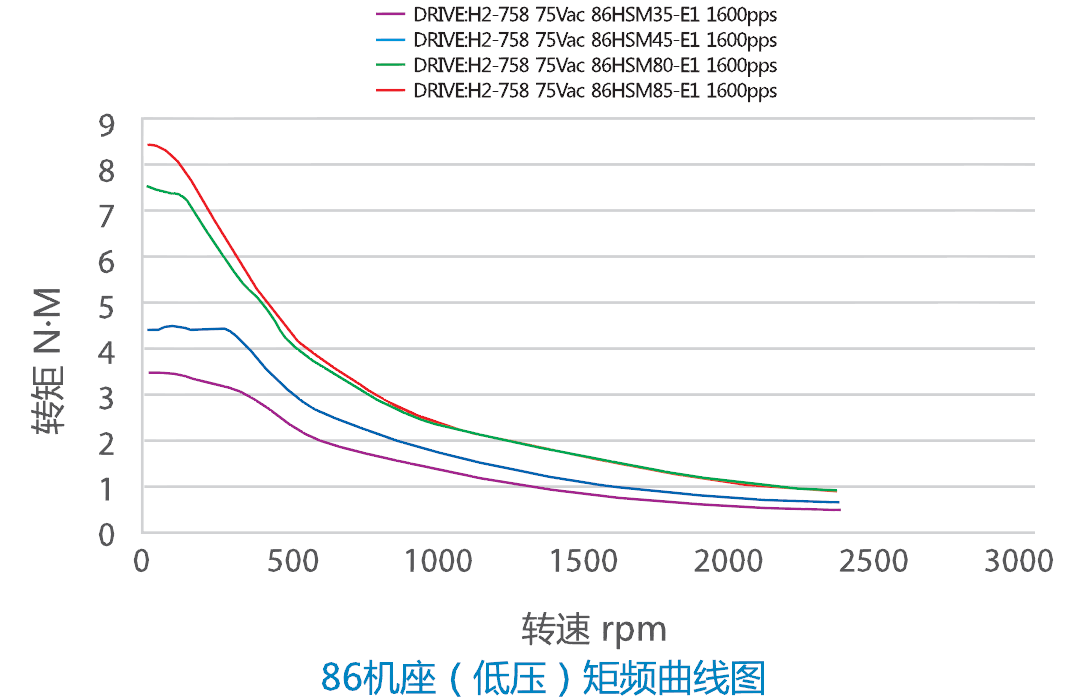

H2-758 H2-1108
